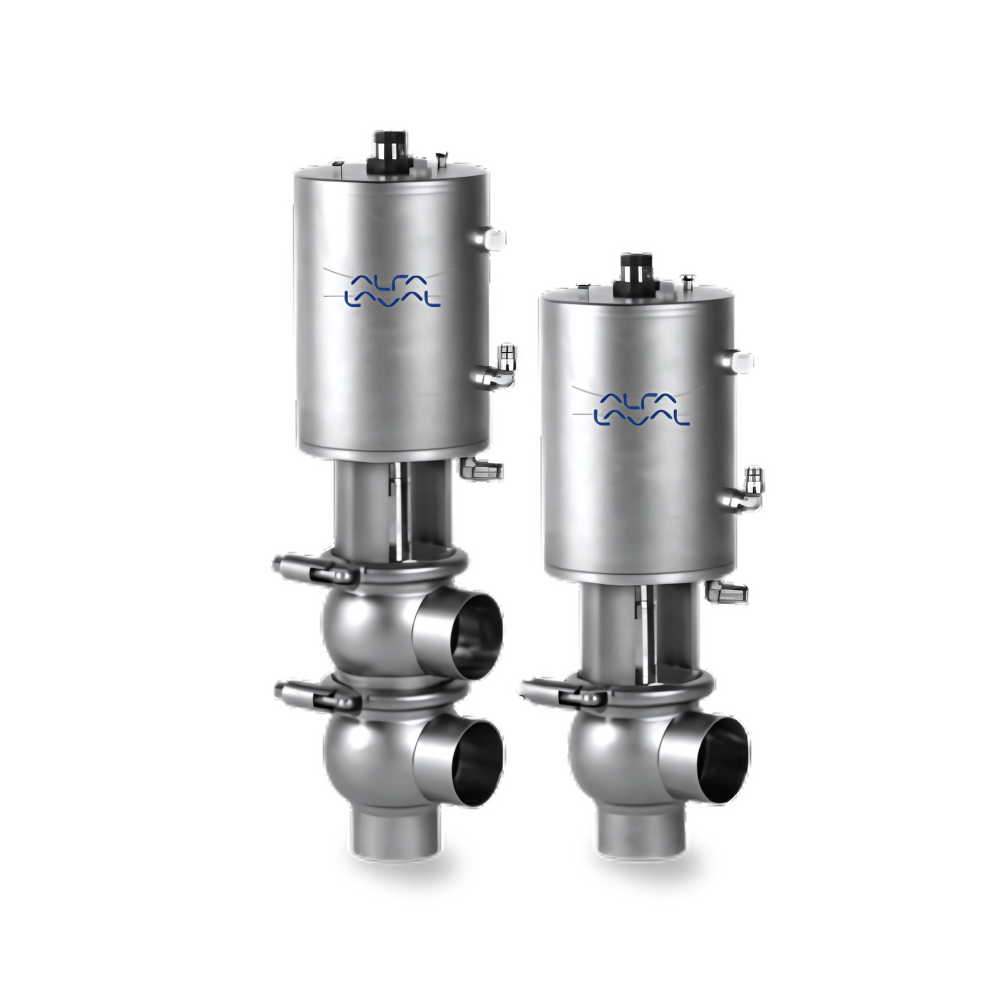

Unique SSV Two Step
With just one point of contact between the plug and seat, the Alfa Laval Unique SSV Two Step pneumatic single seat valve is both dependable and flexible, and it reduces the likelihood of contamination. Its sanitary, flexible and space-saving layout satisfies the most stringent process safety and cleanliness standards.
Its sturdy construction on the tried-and-true Alfa Laval Unique SSV platform makes it a good choice for precise dosing and two-stage filling, as well as for simultaneous draining of two pipes with minimal pressure shocks. The lifting height can be adjusted to accommodate different volumes and amounts. The cheap maintenance costs, great reliability and ease of disassembly are all guarantees of the few moving parts. It may be tailored to meet the needs of individual processes thanks to its extensive set of extra features. A wide variety of sanitary applications in the food, beverage, dairy, brewing and other sectors can benefit from the Unique SSV Two Step’s dosing and filling capabilities.
SSV Two Step Valve Application
The Unique SSV Two Step’s dosing and filling capabilities are useful in a wide range of hygienic applications in the food, beverage, dairy, and brewing industries, among others.
Benefits
- Increased valve longevity and cleanliness, no fissures on the inside
- Improved product safety, static seal leak detection helps
- Protection from full vacuum, double lip seal
- Intermediate plug position
Related Industries
- Agriculture Processing, Beverage Processing, Dairy Processing, Food Processing, Personal Care, Home Care and Personal Care
TECHNICAL DATA
Temperature
Temperature range -10°C to +140°C (EPDM)
Pressure
Max. product pressure: 1000 kPa (10 bar)
Min. product pressure: Full vacuum
Air pressure: 500 to 700 kPa (5 to 7 bar)
PHYSICAL DATA
Materials
Product wetted steel parts: 1.4404 (316L)
Other steel parts: 1.4301 (304)
External surface finish: Semi-bright (blasted)
Internal surface finish: Bright (polished), Ra < 0.8 µm
Other product wetted seals: EPDM
Other seals: NBR
Standard design
The Unique SSV Two Step, which comes in one- or two-body configurations, allows you to simply configure valve bodies, plugs, actuators, and clamp rings. For simultaneous drainage of two pipelines or in closing/filling applications, the valve can be configured as a changeover valve with up to five ports or as a shutdown valve with two to three operational ports.
The changeover version has a valve seat that can be assembled to increase flexibility. It sits between the two bodies. The valve seals’ preset compression design increases their durability and service life. A yoke joins the actuator and the valve body, and clamp rings keep everything together. To change the opening degree for the intermediate position, remove spacer rings from within the actuator.
This valve supports Alfa Laval ThinkTop V50 and V70 sensors and controllers. Almost any process requirement can be easily satisfied using the Alfa Laval Anytime configurator.
The Working Principle
The Alfa Laval Unique SSV Two Step is controlled by a pressurized air supply located some distance away. The actuator’s smooth operation facilitates dosing and filling, while an intermediate phase protects process lines from pressure peaks. The valve may be operated with an Alfa Laval ThinkTop.
