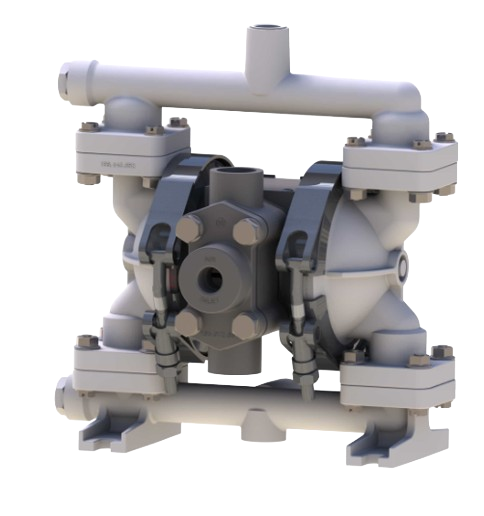

Sandpiper’s Standard Duty AODD Pump, the PB¼, is an air-operated double-diaphragm (AODD) pump is engineered with original equipment manufacturers (OEM) in mind and provides tremendous system flexibility. The PB¼” is one of the most quietest and flexible AODD Pumps in the compact class. Featuring a patented air valve system, this AODD Pump provides non-stalling, non-icing, lube-free operation for years of dependable service. The suction and discharge manifolds have multiple porting option. Available in polypropylene, conductive acetal and PDVF (Kynar) materials of construction, this small yet powerful pump is ideally suited for dispensing inks, coatings, paints, adhesives, oils and other chemicals.
Amongst the highlighted features of the PB¼ AODD pump, it focuses on the benefits such as;
| Port Size | ¼” NPT (Internal) ½” NPT (External) |
| Capacity | 0 to 5 gpm (19 lpm) |
| Air Distribution Valve | No-lube, no-stall design |
| Solids-Handling | 1/32″ (1mm) |
| Heads Up To | 100 psi or 231 ft. of water (7 bar or 70 meters) |
| Max Operating Pressure | 100 psi (7 bar) |
| Shipping Weight | Polypropylene: 3.3 lbs (1.5 kg) PVDF: 3.9 lbs (1.8 kg) |
