Safe and effective flow of low- and medium-viscosity, high-purity fluids through pipework systems.

1. Ensure high efficiency flow of low to medium viscosity products. Maximise uptime with rapid and economical maintenance.
2. Alfa Laval’s Q-doc documentation package promotes complete transparency in sourcing, manufacturing, and supply chains, which helps to eliminate safety risks.
3. Simple piping connections and quick inline mounting can help you save time and space during installation.
4. Discover contemporary Good Manufacturing Practices and specific surface polish, material traceability, and elastomer requirements.

Industries

Biotechnology, Food Processing and Pharmaceutical production

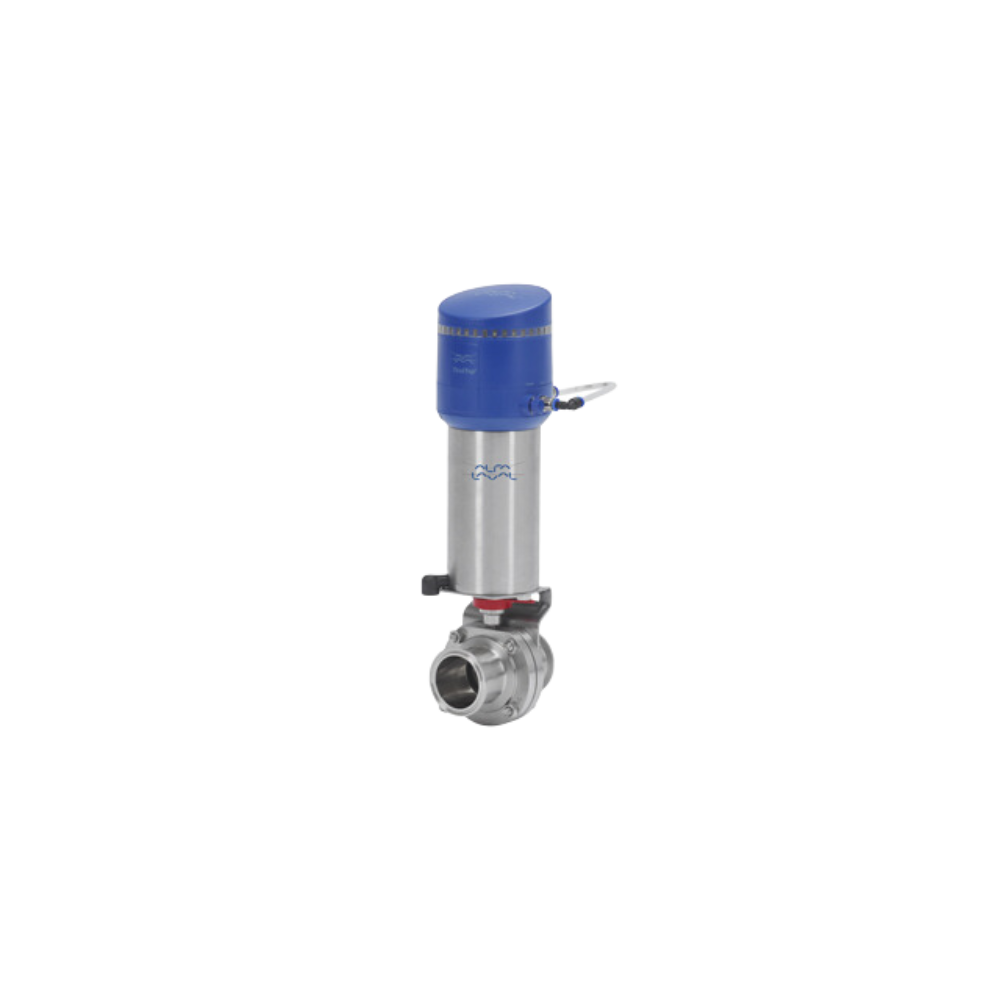

Operating from either a manual quarter-turn handle or a pneumatic actuator at a distance, the Alfa Laval LKB Ultra Pure butterfly valve Usually closed (NC), usually open (NO) and air/air activated (A/A) the actuator exists in three standard forms.

A handle on manual operation mechanically locks the valve either open or closed. Available are two-position, four-position, regulating 90°-position and multi-position handles. Additionally installed with indication units for feedback on the valve position (open or closed) are manual valves.

An actuator in pneumatic operation turns axial piston motion into a 90° rotation of the shaft. As the valve disc contacts the seal ring of the butterfly valve and assures appropriate shutting of the valve seat, the actuator torque increases.
