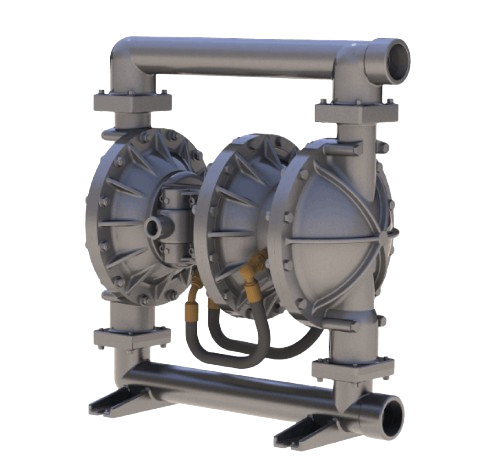

Sandpiper’s High Pressure AODD Pump, the HP20, is a metallic 2:1 high pressure pump providing nearly double the force in applications where pressure is a priority and an excellent flow rates are a must. The high pressure air pump is ideal for thick, viscous fluids (high specific gravity), high head pressure applications, and moving fluids a long distance. The pump incorporates two additional air chambers and one extra side driver diaphragm, double the surface area on which air pressure is exerted. This magnifies the force by nearly doubling the air inlet pressure. The magnified pressure is delivered directly to the pumped fluid via the fluid diaphragms. The Sandpiper AODD pumps achieve high discharge pressures and excellent flow rates.
Amongst the highlighted features of the HP20 High Pressure AODD Pump are;
- Nearly 2:1 high pressure with the full flow of a traditional 2″ pump with the capability to overcome a higher pressure range.
- Simple construction and ease of maintenance.
- Self-priming and end-ported for improved flow.
- Pressures up to 232 psi (16 bar), flow rates up to 92 gpm (348 lpm)
- Bolted construction for greater integrity and reliability.
- Reliable pneumatic air valve is fully serviceable.
- Safely deadheads – stalls against closed head without damage.
- Restart on demand.
- Suitable for a wide range of applications:
- Available in aluminum or stainless steel wetter path material.
- Aluminum non-wetted center section.
- Elastomeric options include:
- Buna
- Santoprene (PTFE Balls)
- Neoprene
- PTFE
- Standard weighted elastomeric or solid PTFE check valve balls & stainless steel seats for high specific gravity and viscous fluids applications.
- Available with NPT or BSPT threaded porting options.
- All models are ATEX approved.
