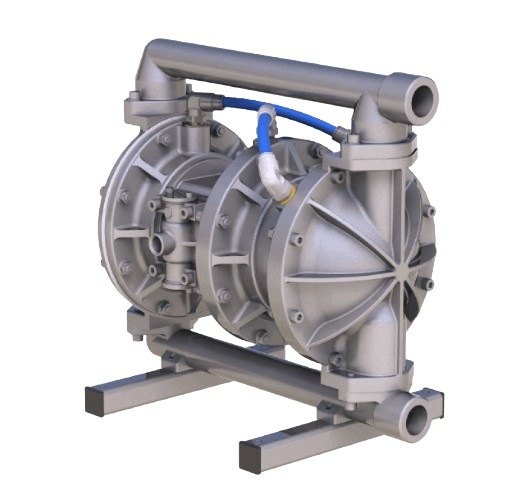

Sandpiper’s High Pressure AODD Pump, the HP10, is a metallic 2:1 high pressure pump providing nearly double the force in applications where pressure is a priority and an excellent flow rates are a must. The high pressure air pump is ideal for a thick, viscous fluids (high specific gravity), high head pressure applications and moving fluids a long distance. The pump incorporates two additional air chamber and one extra air side driver diaphragm, doubles the surface area on which air pressure is exerted. The magnified pressure is delivered directly to the pumped fluid via the fluid diaphragms. The Sandpiper AODD Pumps achieve high discharge pressures and excellent flow rates.
There are a variety of highlighted features of the HP10 AODD High Pressure Pump are;
- Nearly 2:1 high pressure with the full flow of a traditional 1″ pump and the capability to overcome a higher-pressure range.
- Simple construction and ease of maintenance.
- Self-priming and end-ported for improved flow.
- Pressures up to 232 psi (16 bar), flow rates up to 33 gpm (125 lpm).
- Bolted construction for greater integrity and reliability.
- Reliable pneumatic valve is fully serviceable.
- Safely deadhead – stalls against closed head without damage.
- Restart on demand.
- Suitable for a wide range of applications:
- Available in either aluminum or stainless-wetted path material.
- Aluminum non-wetted center section.
- Elastomeric options include:
- Buna
- Santoprene (PTFE Balls)
- Neoprene
- PTFE
- Standard weighted elastomeric or solid PTFE check valve balls & stainless-steel seats for high specific gravity and viscous fluids applications.
- Available with NPT or BSPT threaded porting options.
- All models are ATEX approved.
