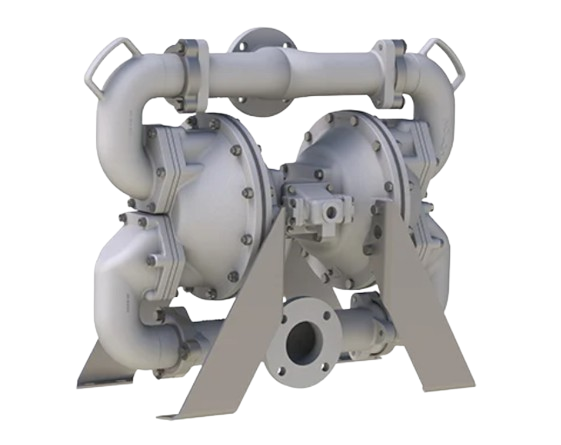

Sandpiper’s Heavy-Duty AODD Pump, the HDF3 & HDF4, are a heavy-duty flap valve pump that has been proven to be a solution for the most common challenges in sump applications, mine dewatering and any liquid application involving solids. These AODD Pumps are the highest recommendation pumps for abrasive slurries, suspended and non-suspended solids and up to ¾” line-size solids. As part of the Sandpiper’s Evolution Portfolio improvement it has experienced an optimization towards the capabilities of the pump. The pumps are thick-wall constructed of sand-casted aluminum, cast iron and stainless steel with elastomer and TPE (thermoplastic elastomer) diaphragms and check valves.
Amongst the highlighted features of the HDF3 & HDF4 AODD Pumps are;
| Port Size | HDF3: 3″ 150#ANSI Flange HDF4: 4 150#ANSI Flange |
| Capacity | Aluminum: 0 to 310 gpm (1,173 lpm) Cast Iron: 0 to 303 gpm (1,147 lpm) |
| Air Distribution Valve | No-lube, no-stall design |
| Solids-Handling | Up to nearly 3″ (75 mm) |
| Heads Up To | 125 psi or 289 ft. of water (8.6 bar or 88 meters) |
| Displacement/Stroke | Aluminum: 1.60 gallons (6.08 liters) Cast Iron: 1.15 gallons (4.73 liters) |
| Max Operating Pressure | 125 psi (8.6 bar) |
| Shipping Weight | Aluminum: 245 lbs (110 kg) Cast Iron: 390 lbs (176 kg) |
