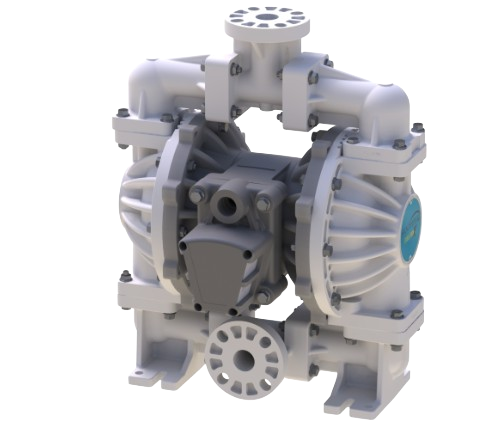

Sandpiper’s new AODD Pump line, the EvolutionX 1″, a new patent pending pump that has been evolved to perform better than ever. The pump is the first to launch in a series of pump sizes. This innovative air-operated double-diaphragm (AODD) is the culmination over 55 years of industry leading research, development and engineering in pump and fluid dynamics. The EvolutionX represents the pinnacle of performance, efficiency and serviceability. The pump is highlighted with enhanced features to further the potential of the pump in its applications.
Amongst the highlighted features of this AODD Pump are;
- Enhanced Convenience: Exponentially reduce AODD Pump assembly and service time:
- Reduced service time – EvolutionX takes, on average, five minutes to service the air distribution system (ADS) compared to 45 minutes average for other AODD Pumps.
- Serviceability – All the wet side nuts and bolts are the same size and length, and the use of washers has been eliminated. On top of that, the EvolutionX has the 50% fewer fasteners than the previous model.
- Accessibility – You can access airside components by removing only four bolt revealing an easily removable cartridge-style main air valve and pilot valve assembly.
- Improved Stability for Increased Safety – added “stand-off ” feet to the inner chambers to stabilize the pump on the workbench during assembly.
- Superior Performance & Efficiency: Improve overall efficiency and safety during operation while decreasing operating costs due to:
- Lower Energy Use – Achieve an incredible 20% average increase in air efficiency throughout the entire curve over the prior model.
- High Flow – The EvolutionX has the highest flow rate of any other 1″ AODD Pump.
- Increased Versatility: Meet countless configuration and application needs with interchangeable components, featuring:
- Durable, non-metallic construction rated for operation up to 125 psi with ATEX versions available.
- Numerous porting options:
- The standard EvolutionX configuration features a versatile 3-piece manifold with a universal ANSI & ISO Flanged connection. Users can quickly adjust the discharge outlet for porting in multiple directions.
- Other porting options include a single piece end-ported manifold or a dual-ported option to accommodate mixing or processing two fluids with a single pump.
- The mounting feet are extremely versatile and fit existing Sandpiper pumps and multiple other manufacturers dimensions.
