The Bertoli Homogenizers and High Pressure Pumps from the Raffaello Series are a sanitary execution design that highlights to the strict standards of the food processing and pharmaceutical international standards. The materials of construction for the homogenizer are compliant to these standards making it highly suitable for industrial applications that require sanitary-compliant applications.

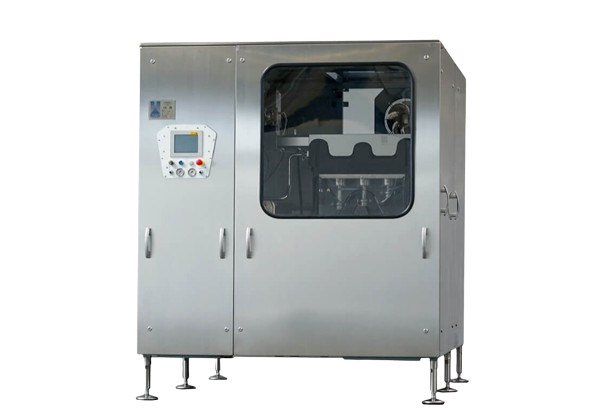

The Bertoli Homogenizer, Raffaello Series, the HA34-SRV, is a high-pressure pump that can reach industrial production up to 22,000 l/h and maximum working capacities of 1,500 bar with its Starline Plus edition. The design is highly focused on its capabilities of being highly reliable and easily maintained. The homogenizer is suitable for the chemical, cosmetic, dairy, pharmaceutical and food and beverage industrial applications. With its closed-cabinet design, the homogenizer comes with poppet valves, allowing both high and low-viscous products to emulsify and homogenize efficiently with minimal maintenance required.
Bertoli’s Homogenizers has a variety of highlighted features suitable for your intended requirements. Amongst the highlighted features for the Raffaello Series, HA34-SRV are;
- Liquid End: Duplex (SAF2205) mono-block shoot peened stainless steel compression head with high mechanical and corrosion resistance, ceramic Plungers, UHMW plunger seal for high pressure.
- Single stage transmission system with trapezoidal belts and pulleys.
- Homogenizing group with hydro-pneumatic actuation of homogenizing pressure for high result efficiency, ceramic homogenizing valves up to 1,500 bar.
- Ball type pumping valves, suction and delivery valve seats integrated in single part.
- Overpressure valve, flow switch alarm on water circuit.
- Forced lubrication system with pressure switch, cast iron crankcase with supporting roller bearings, nitrurized crankshaft.
- Terminal box and control panel for local/remote control.
The options offered for the HA34-SRV, Raffaello Series Homogenizer are to ensure the application would better suit the needed requirements;
- Second stage homogenizing group
- Aseptic execution
- Design suitable with 3A, EHEDG or PHARMA.
- Standard or Sharp Homogenizing valve with different geometries depending on the type of product
- Tungsten Carbide
- Ceramics
- Double Inlet Manifolds
- Inlet and Outlet Connections
- Explosion proof design
- Soundproof design
- Vibration and temperature monitoring and alarm
