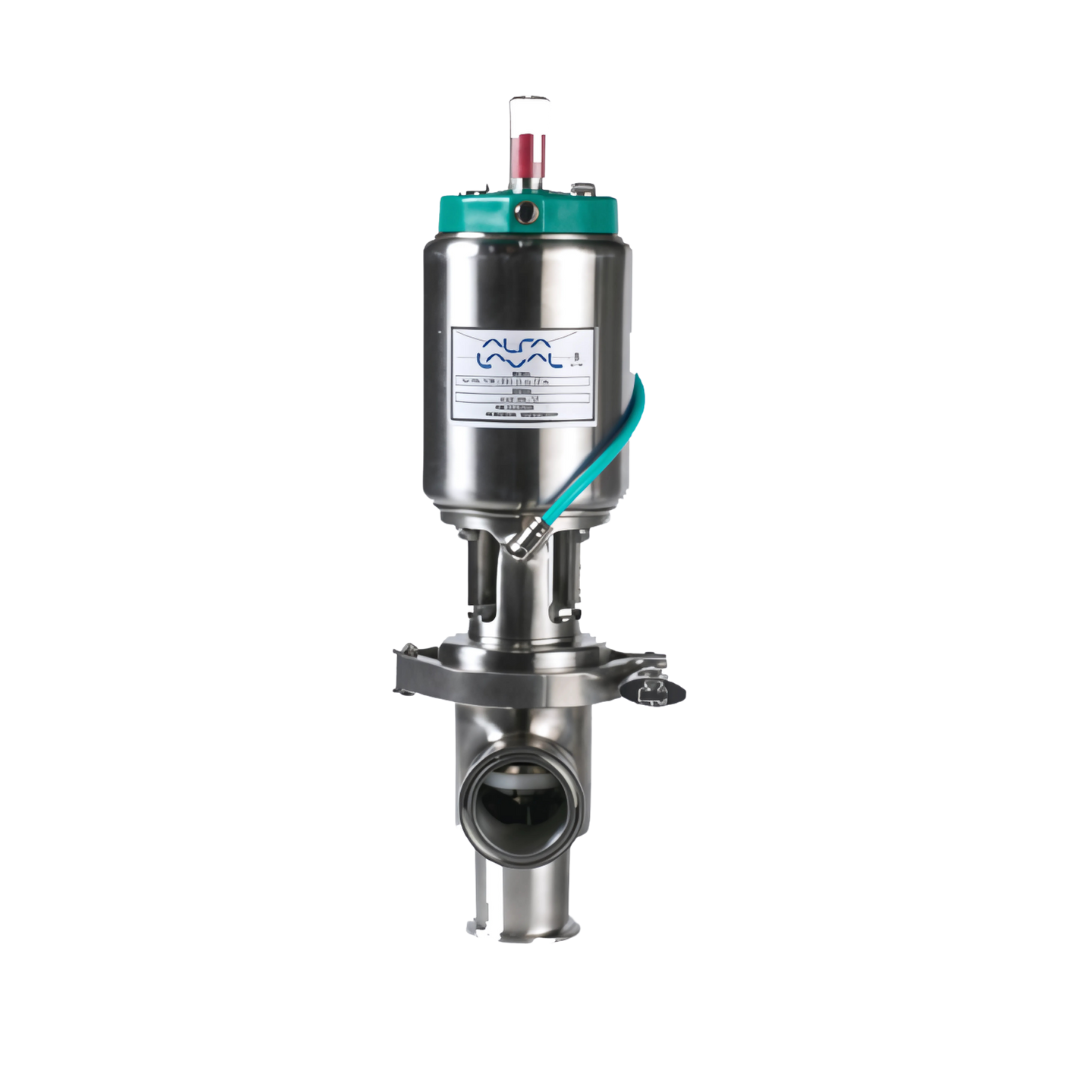

Alfa Laval Tri-Clover 700 Series Valve

Alfa Laval Tri-Clover Valves 700 Series

The Alfa Laval Tri-Clover Valves 700 Series is a range of air-operated single seat valves that provide years of reliable performance, and have been installed for decades in various food, dairy and beverage plants across the US.

The Tri-Clover 700 Series Valve from Alfa Laval deliver years of reliable performance in a wide variety of temperature ranges and working conditions. Choose the configuration that’s right for you.

A sanitary and flexible design offers alternatives to meet the exacting requirements of your applications. Whether you choose a stop valve with two or three ports, or a divert valve with three to five ports, the 700 Series valves offer great flexibility for the long haul.

Models

Shut-Off
Divert
Throttling
Tank Outlet
Kettle

Related Industries:

Processed Foods, Dairy, Beverages, Brewery, Home & Personal Care, Chemical

Single Seat Valves & Double Seat Valves

Alfa Laval’s range of single seat valves consists of large numbers of purpose-designed valve units that are very robust and flexible. They are ideal for use in processes with a high hygiene standard.

On the other hand, double seat valve concept provides modular solutions that are easily tailored to any specific requirement. The double seat design provides long-lasting, spillage-free operation thus minimizing the risk of product contamination. The use of double lip seals provides added protection to ensure safe and hygienic operation.

Alfa Laval Valve Automations: Indication Unit, IndiTop, ThinkTop, ThinkTop Basic, ThinkTop D30, GreenTop

Alfa Laval Tri-Clover Valves 700 Series Application

Dependable design

Alfa Laval Tri-Clover 700 Series valves feature a durable and dependable design with rugged plastic stem bushings, which eliminate metal-to-metal galling. In addition, the stem is threaded to the actuator shaft, eliminating the coupling between the stem and actuator, thereby ensuring proper alignment. Bushings at each end of the cylinder support stem also ensure perfect alignment. Finally, each valve features a heavy-duty bonnet and body ferrule design that will stand up to years of pounding from hydraulic shock.

A variety of styles and sizes

Alfa Laval Tri-Clover 700 Series Valve are available in both long and short actuators, including a wide selection of shut-off and divert valves. Sizes range from 2 in (50 mm) to 4 in (102 mm), in normally opened or closed positions. A 32Ra surface finish is standard, with several valve body combination options to choose from.

Helping fill your valve project gaps

Even in this era of continuous mixproof processing, Alfa Laval Tri-Clover Valves 700 Series are the perfect valve project gap filler. Specifically, if a simple divert valve is needed, consider a 761 divert valve. Or, if a section of your process requires flow diversion, install a series of 762 Flow Diversion valves – as shown.

Tri-Clover 700 Series Valves arranged on stainless steel industrial piping with orange identification tags

The Alfa Laval Tri-Clover 700 Series Valve is remote-controlled by means of compressed air. It has few and simple moveable parts which results in a very reliable valve.

As an air-operated seat valve, it can be configured with either a short-stroke or long-stroke actuator. The 761 valve has a flexible sanitary design, allowing it to be used in a wide range of applications as a stop valve with two or three ports or as divert valve with three to five ports.

Cross-sectional view of a Tri-Clover 700 Series Valve showing the spring mechanism and tri-clamp connections.

Standard Design

The Alfa Laval Tri-Clover Valves 700 Series rugged plastic stem bushings eliminate metal-to-metal galling. The stem is threaded to the actuator shaft, eliminating the coupling between the stem and actuator, which ensures proper alignment. Bushings at each end of the cylinder support stem also ensure perfect alignment. Each Tri-Clover Valves 700 Series features a heavy-duty bonnet and body ferrule design that will stand up to years of pounding from hydraulic shock.

Working Principle

Alfa Laval Tri-Clover 700 Series Valve are remotely controlled by means of compressed air. This design requires very few simple, movable parts, greatly enhancing reliability. Heavy-duty construction and precision-molded bonnet gaskets ensure positive alignment under severe operating conditions. The valve stem design requires only a single o-ring seal.

Actuator Function

Normally open (NO), normally closed (NC), or air-to-air operation
Actuators are reversible NO/NC and semi-maintainable
Short or long stroke
High pressure option available

Materials

Product Wetted Steel Parts	316L
Other Steel Parts	304
Plug Stem	Buna bonded or ‘TR’/’TR2’ PTFE replaceable (standard) EPDM or SFY (optional)
Product Wetted Seals	Buna (standard) EPDM or SFY (optional)

Technical Data

Max Product Pressure	Depends on valve specification and size (contact CSI)
Temperature Range	200 – 284°F (EPDM)
Air Pressure	60 – 80 psi
